Scotts Damper Australia SUB Mount Kit SOLID (6125-01) KTM (24-C) EXC / EXCF / XCW. Husqvarna (24-C) FE / TE. GAS Gas (24-C)

2024 KTM SUB MOUNT

DESCRIPTION

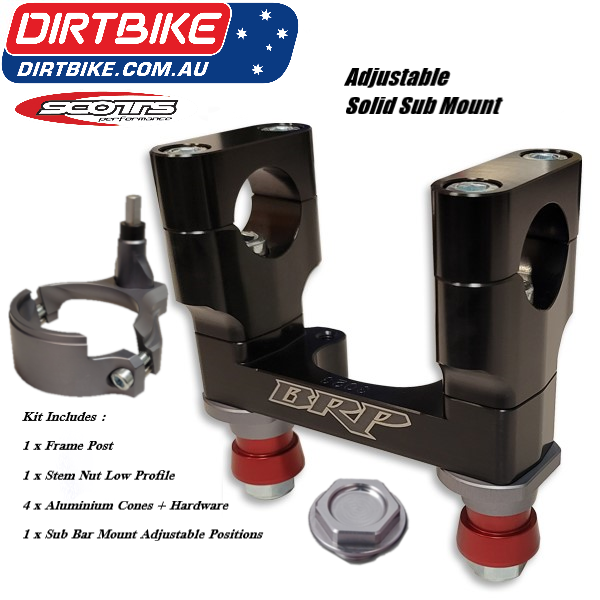

SCOTTS SOLID MOUNTED SUB KIT INCLUDES:
1) Scotts Frame Post

1) BRP Adjustable Solid SUB Mount
1) Low Profile Stem Nut & All Necessary Hardware

We recommend using a Clean Speed Cable Guide (Sold Separately)    SC-AC-CABLE-GD-SUB      to ensure proper cable routing.  See at very bottom.

This kit is designed for those of you who already have a Scotts stabilizer and would like to go sub mounted. Kit includes SUB Mount and all necessary hardware.

• Offers an approximately 1″ taller bar position
• Lower Bend Bars can be used to compensate for additional height.
• SUB Mounting reduces the risk of bodily injury
• Stabilizer is tucked away and protected from potential damage from a crash.
• 3mm offset bar perches to maximize rider comfort

SPECIAL NOTES:
When running a stabilizer in the sub mount configuration, the stabilizer link arm will need to be reverse mounted “going under the body of the unit”. To reverse the link arm we recommend using a Scotts Link Arm Puller (Sold Separately).

"SUB" mount stands for Stabilizer Under Bars, originally designed for raising the bars. These kits are designed for use with Oversize bars. "Bar reducers" are available as an option, to convert the kit to standard diameter bars, should that be desired. This concept allows more room for other equipment such as, Global Positioning Systems(GPS) or Enduro/Rally computers and yet still retain the quick access for adjusting the stabilizer. This is also good for the taller rider who wants his bars a little higher, as it raises the bar location approximately 11-25mm, depending on the model of bike. In some cases, you might consider a lower bend handlebar bend at the same time, unless you are trying to achieve a higher bar height along with your stabilizer installation. We can also help you with other handlebar choices to match your desired setup, as we have a full selection of handlebars to choose from on this website. The SUB mounts are only available on certain models based on the physical limitations of mounting in this area. Each SUB mount comes complete with all necessary parts, hardware and "Step by Step" pictured instructions. If you have any questions, feel free to call or email us. The Photo attached here may be a generic photo to show you the basic components in the kit, but may not be showing the exact kit for your specific bike.Sub Mount can usually come as both a solid mount kit or Rubber Damped option for certain KTM Based models. Great reduction in vibration through the handlebars and help older trail /enduro riders extend their riding time.

KTM

(23-C)   SX / SXF / XC / XCF.

(24-C)   EXC / EXCF / XCW.

Husqvarna

(23-C)  FC / FX / TC / TX.

(24-C)  FE / TE.

Gas Gas

(24-C)  MC / MCF / EX / EC.

(22 Cone TC). SUB SOLID
