Scotts Damper Australia SUB Mount Kit RUBBER DAMPED (6125-01R) KTM (24-C) EXC / EXCF / XCW. Husqvarna (24-C) FE / TE. GAS Gas (24-C)

2024 KTM RUBBER SUB MOUNT

The SCOTTS BRP Rubber Mounted SUB “Scotts Under Bar”  Adapter uses (8) Poly-Urethane bushings to isolate vibration and reduce rider fatigue by softening the harsh spike of hitting square edge rocks and obstacles. NOW available with two different durometer bushings to fine tune the amount of vibration dampening.

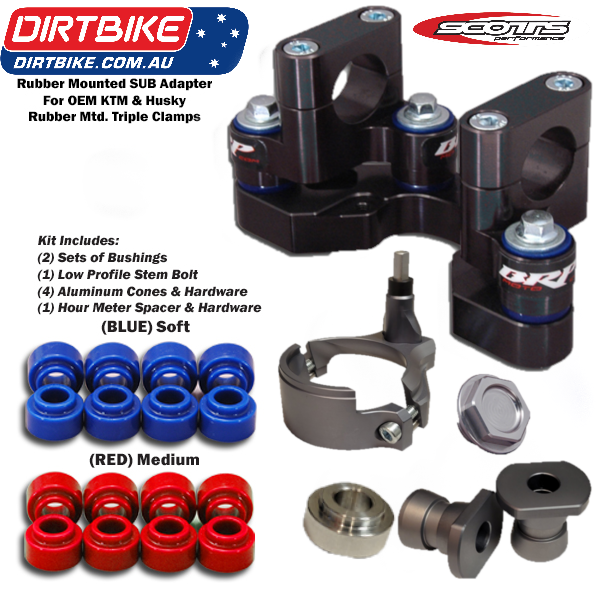

BRP RUBBER MOUNTED SUB KIT INCLUDES:

1) Scotts SUB Frame Post
1) BRP Rubber Mounted SUB Adapter
2) Sets of Rubber Bushings -(Red = Medium and Blue = Soft.)
1) Hour meter spacer & All Necessary Hardware.

We recommend using a Cable Guide  SC-AC-CABLE-GD-SUB  (Sold Separately) to ensure proper cable routing.  (Select Cable Guide in link at very Bottom of page)

This kit is for those of you who already have a Scotts stabilizer and would like to go sub mounted. Kit includes Sub adapter and all necessary hardware.

Designed to mount a Scotts stabilizer below the handlebar using your OEM cast or billet triple clamp. The BRP Rubber Mounted SUB adapter mounts to the existing rear bar mount holes and allows you to run in position 3 which is the most common and popular position. SUB Mounting a stabilizer offers several benefits over a conventional “above bar” setup and is becoming a very popular setup for GP’s, motocross, off road, dual sport applications and riders of taller stature.

• Offers an approximately 1″ taller bar position
• Lower Bend Bars can help to compensate for additional height.
• SUB Mounting reduces the risk of bodily injury
• Stabilizer is tucked away and protected from potential damage from a crash.

"SUB" mount stands for Stabilizer Under Bars, originally designed for raising the bars. These kits are designed for use with Oversize bars. "Bar reducers" are available as an option, to convert the kit to standard diameter bars, should that be desired. This concept allows more room for other equipment such as, Global Positioning Systems(GPS) or Enduro/Rally computers and yet still retain the quick access for adjusting the stabilizer. This is also good for the taller rider who wants his bars a little higher, as it raises the bar location approximately 11-25mm, depending on the model of bike. In some cases, you might consider a lower bend handlebar bend at the same time, unless you are trying to achieve a higher bar height along with your stabilizer installation. We can also help you with other handlebar choices to match your desired setup, as we have a full selection of handlebars to choose from on this website. The SUB mounts are only available on certain models based on the physical limitations of mounting in this area. Each SUB mount comes complete with all necessary parts, hardware and "Step by Step" pictured instructions. If you have any questions, feel free to call or email us. The Photo attached here may be a generic photo to show you the basic components in the kit, but may not be showing the exact kit for your specific bike.Sub Mount can usually come as both a solid mount kit or Rubber Damped option for certain KTM Based models. Great reduction in vibration through the handlebars and help older trail /enduro riders extend their riding time.

KTM

(23-C)   SX / SXF / XC / XCF.

(24-C)   EXC / EXCF / XCW.

Husqvarna

(23-C)  FC / FX / TC / TX.

(24-C)  FE / TE.

Gas Gas

(24-C)  MC / MCF / EX / EC.

(22 Cone TC). SUB RUBBER
