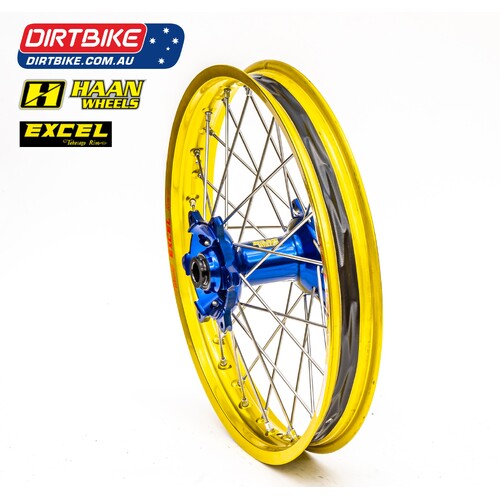

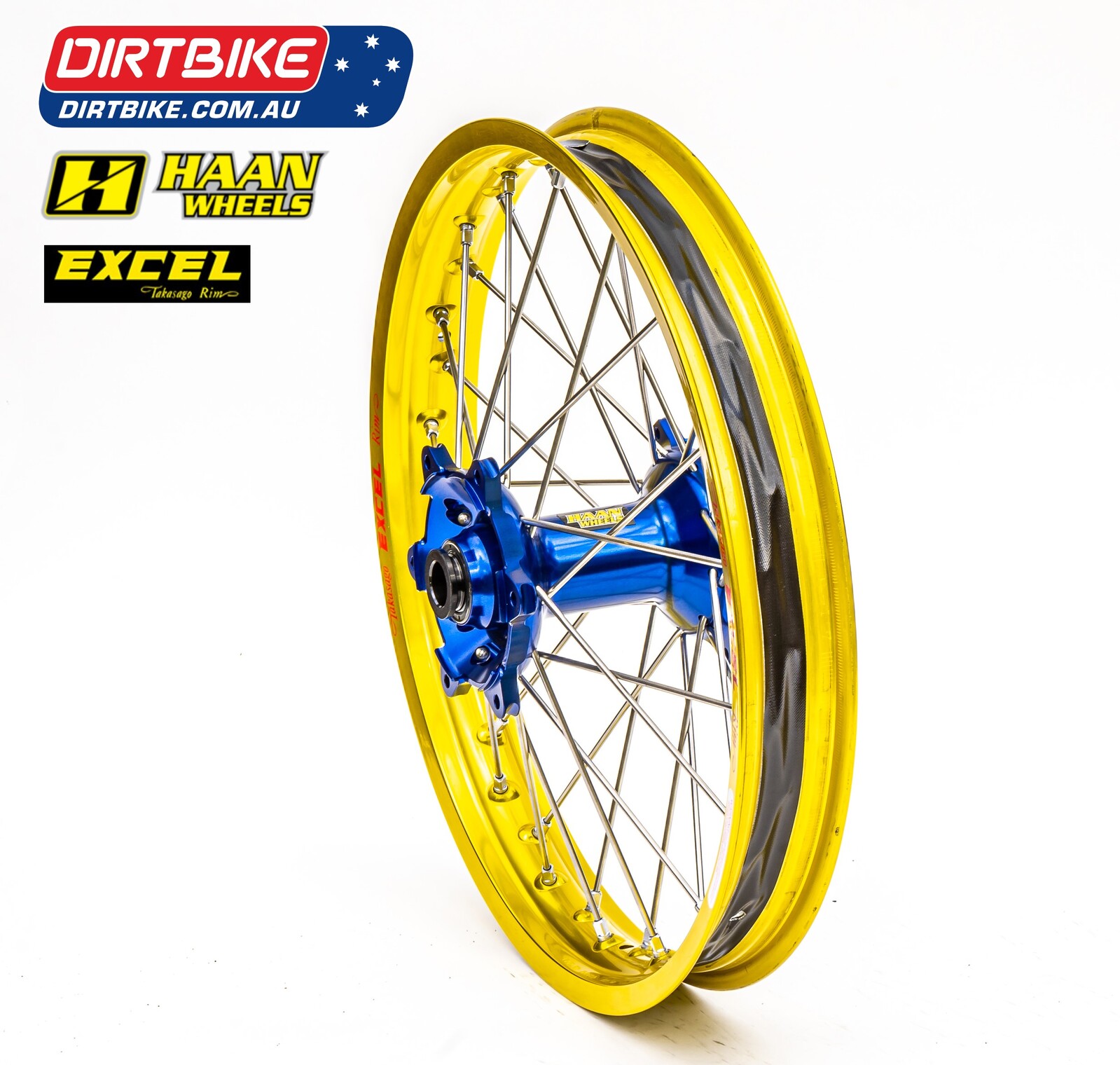

Haan Wheels Australia "Factory" RALLY Spec SHERCO Wheel. 18"Rear

Click here to design your colour combo on Haans Site then return here for purchase.

http://custom.haanwheels.com/configurator/configure/17/?qty=1

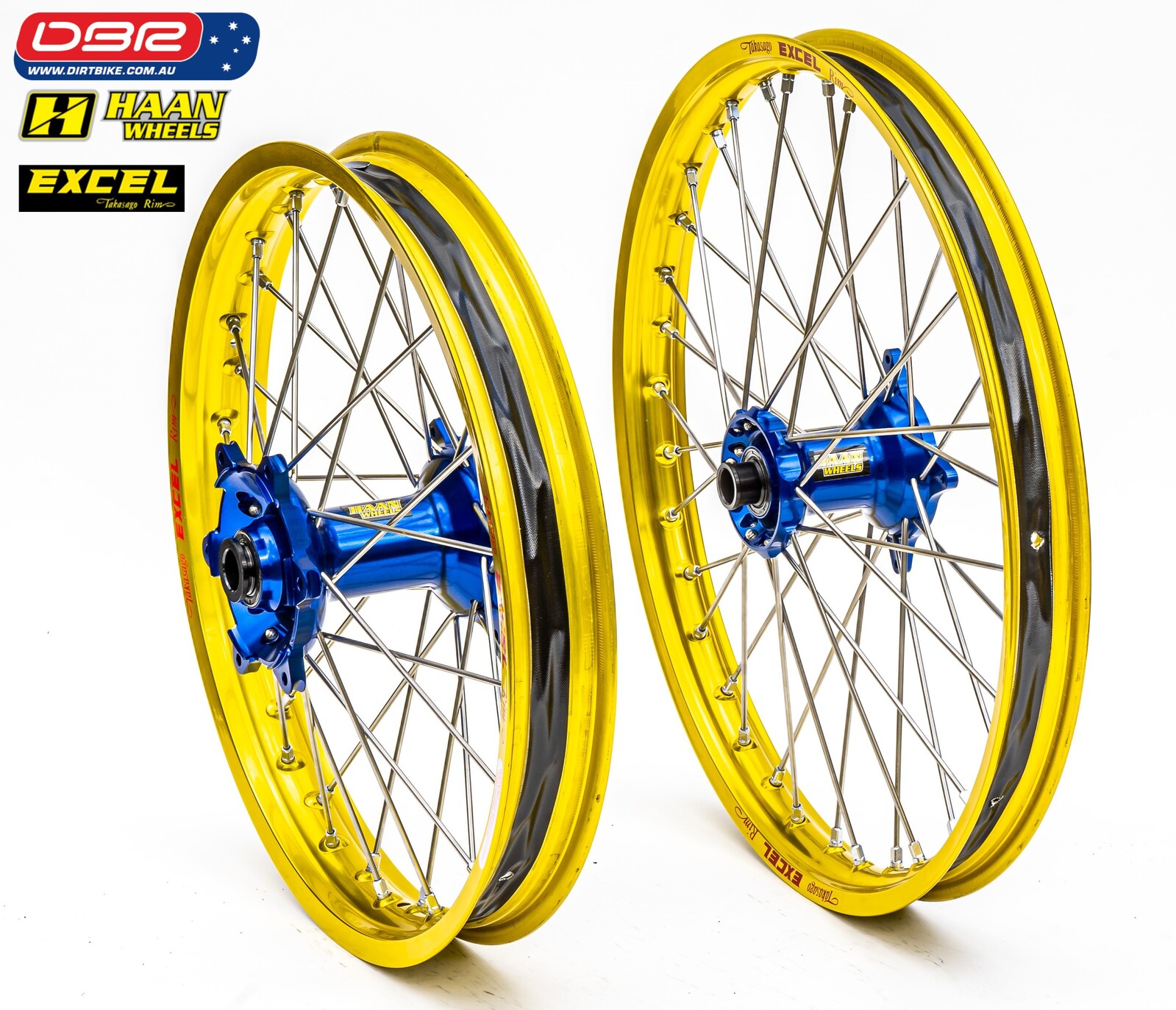

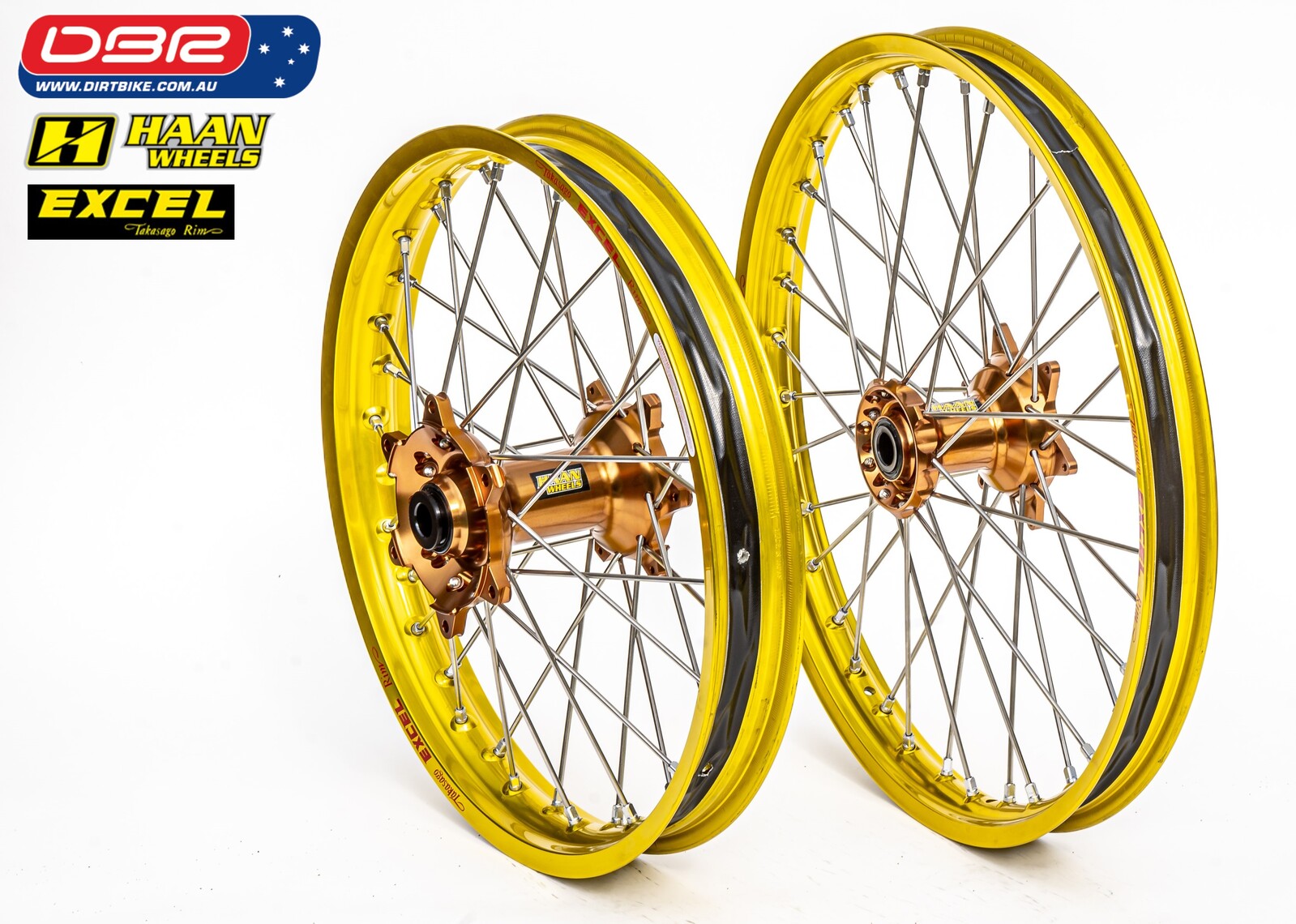

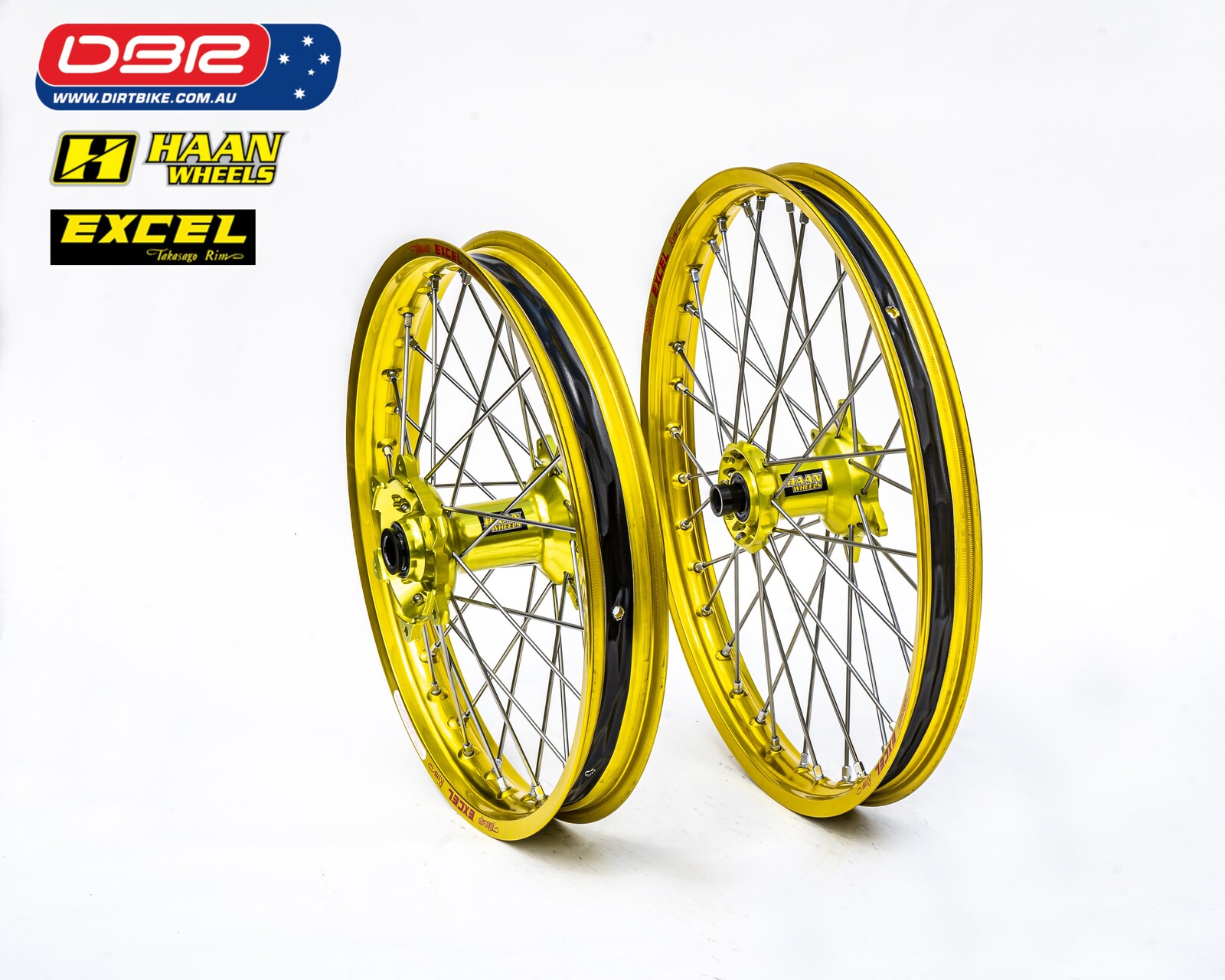

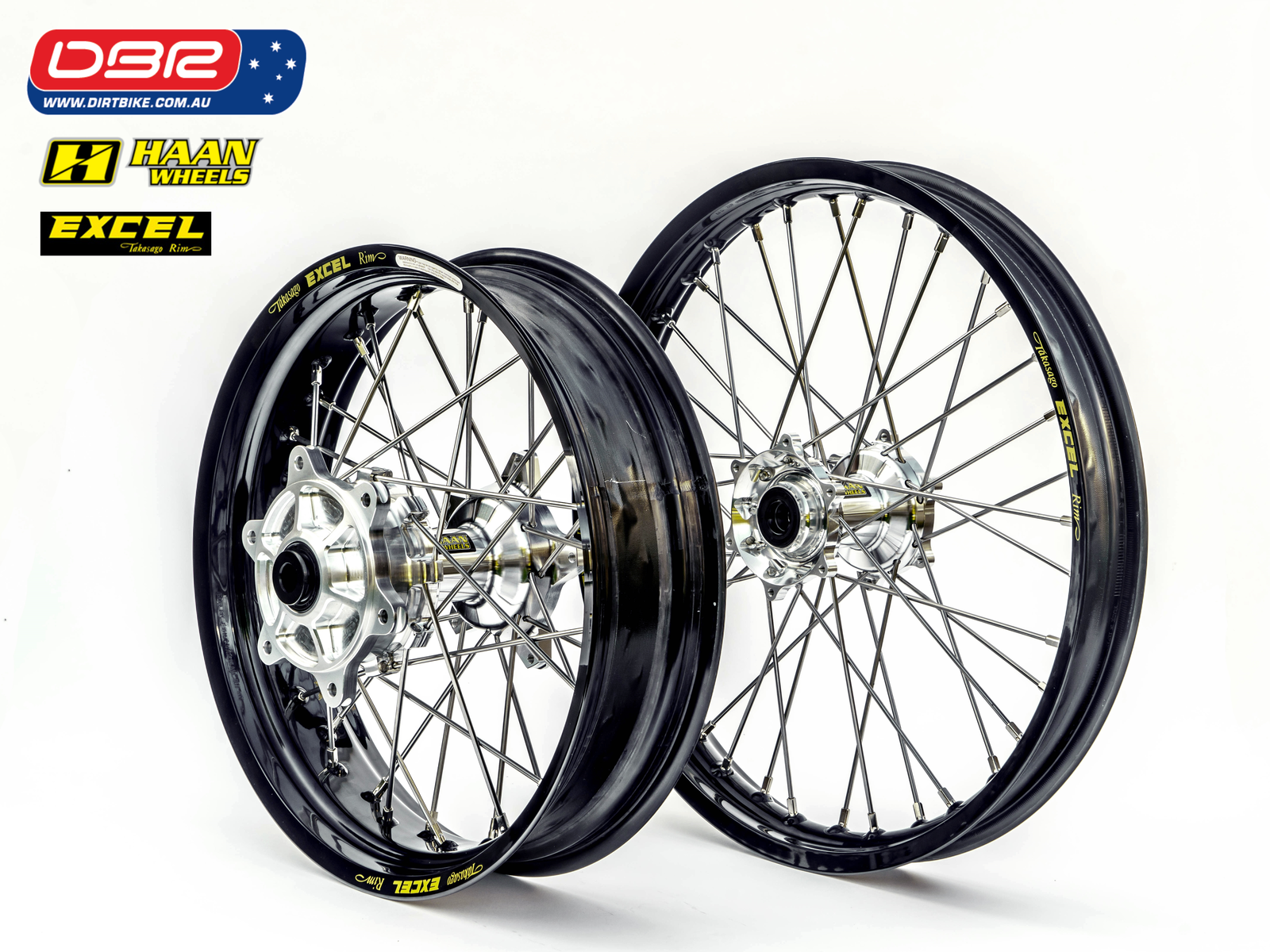

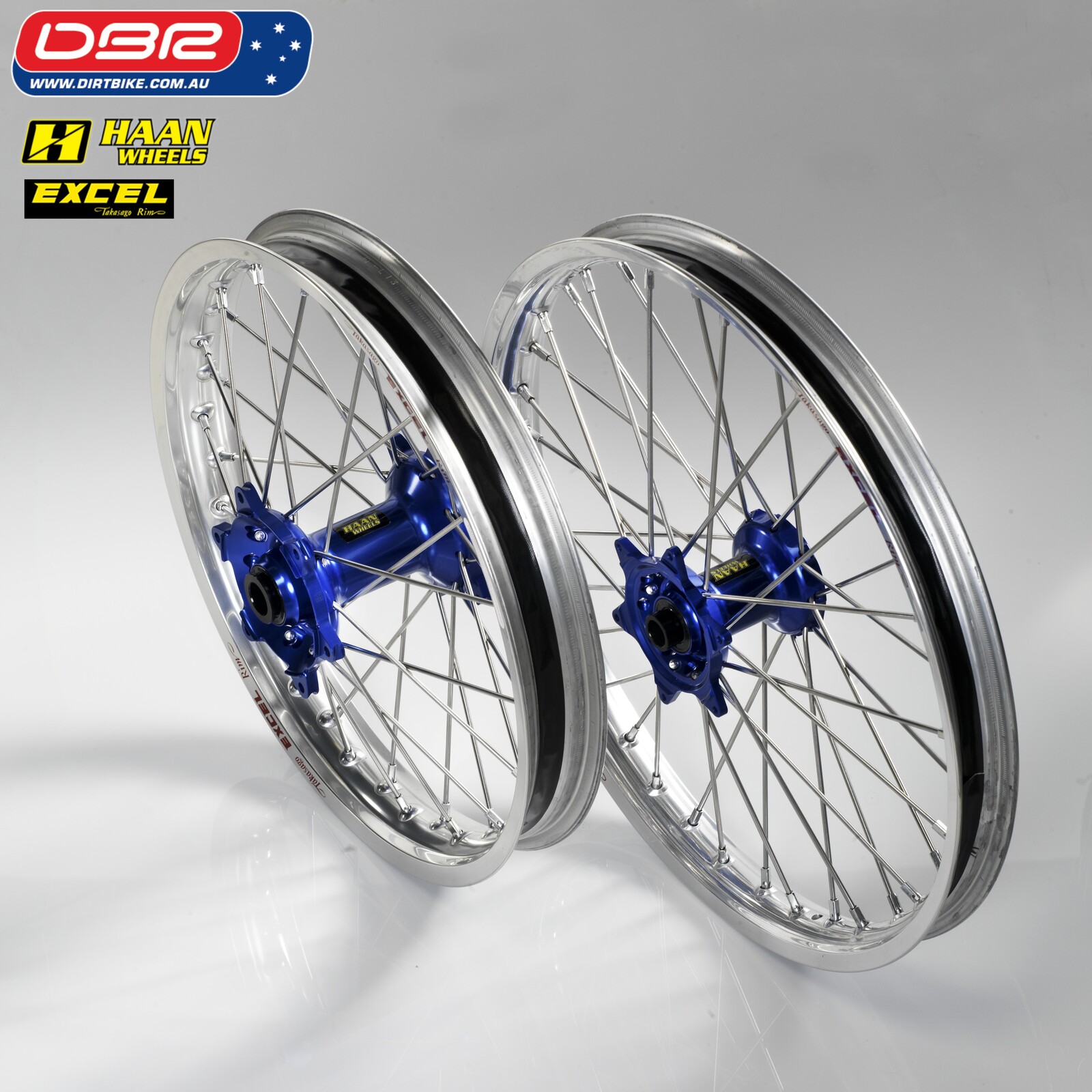

HAAN "Factory" Rally wheel Assembly

Yamaha's Factory Dakar Effort purchased the exact same wheels just like you can from DIRTBIKE PTY LTD !!

Used in Australia by Factory Teams such as GHR Honda and leading privateers to win the A4DE / AORC / Finke / Hattah Outright !!

Used by 50% of world MX teams

Ok so what is the KTM EXC Factory Rally Wheel Set. This wheel set is quite simply the strongest combo possible for the KTM EXC Offroad Range. Perfect for the purpose of building a Rally bike from the exc sxf Range or simply a great lightweight Adventure Bike. Ideal for protecting the Hard facing on the gearbox and smoothing out the ride. We start with a HAAN cush drive rear hub and then lace that to the Excel Takasako Rim with the best spokes made from Haan. Sounds simple but why buy them from Dirtbike Pty Ltd.

Dirtbike Pty Ltd is also owned by myself Glenn Hoffmann which was resposible for the GHR Honda Outright victories at Finke / Australian Safari / Condo 750 / Hattah / Australian Offroad Championships / Four Day and Aussie Supermoto Titles , GHR Honda had many rental bikes also at these events and two successful campaigns at Dakar using what I call the Rally wheels at the Desert Events.

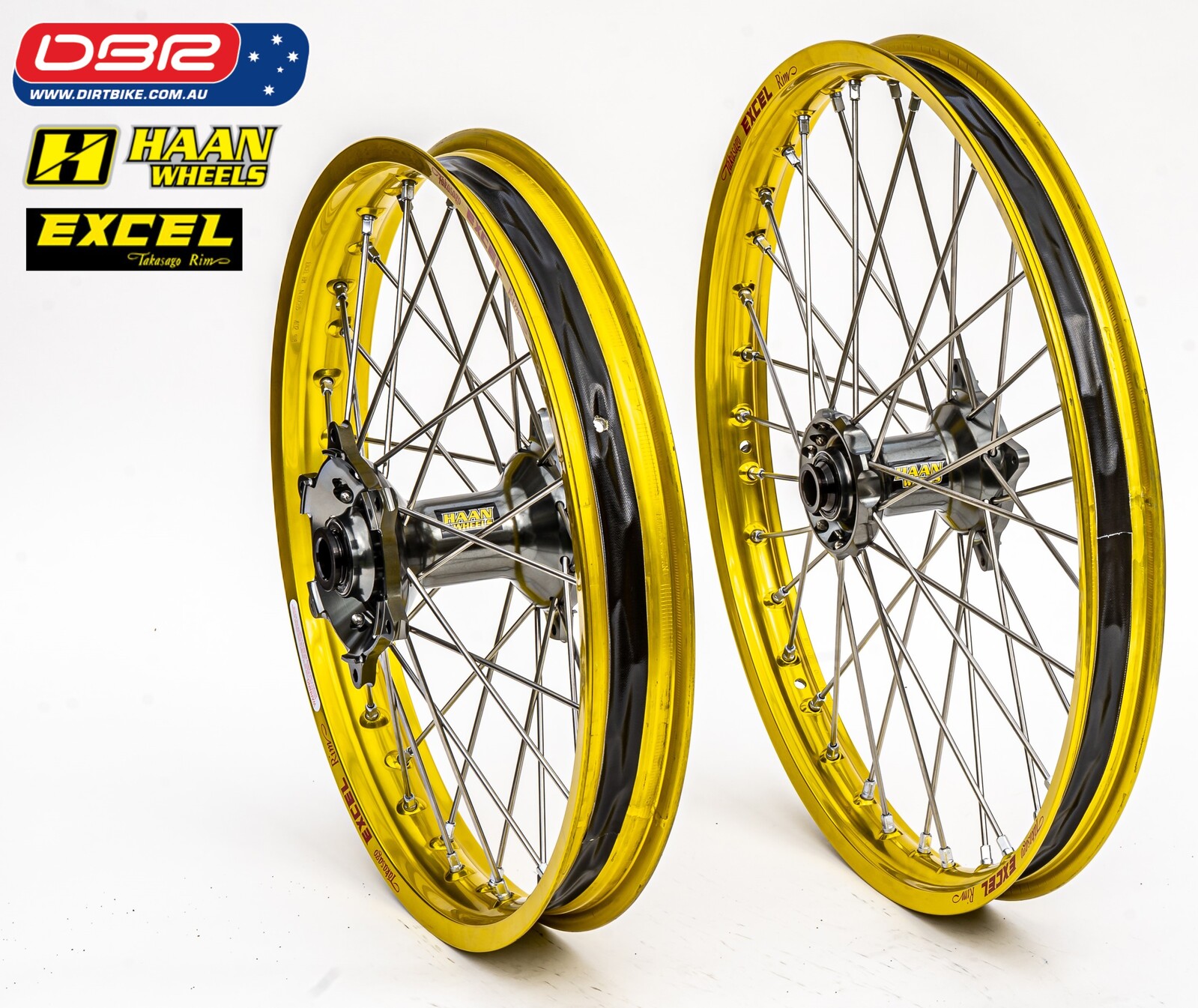

For the KTM we use a 21" front size and 18" rear size Exactly like the Factory Rally KTM Bikes of Toby and Sam. This is the ultimate set up should you want to use tyres more suited to offroad use and mousse, you can of course use traditional tyres and Heavy Duty tubes if you like also no problem.

The advantage of the Rally Rim is it is much more reliable than even a normal excel purchased from other vendors. 300,000km with riders like Grabbo and the Smith boys have taught us what combo works best and no rider has ever suffered a wheel failure on our Rally Wheels and no they are not A 60's. You are welcome to phone and I will discuss the difference in person.

The original front brake disc can be fitted from your existing wheels (or you can go onto our search by bike KTM EXC you can then purchase the nesessary disc front and rear along with which tooth sprocket / rear disc. Some people simply sell their original wheels and put the money towards the Rally set.

Other Rally wheel mods can include grease nipples kit which allow you to inject mousse gel into the rear wheel and tyre externally. Another GHR first. This allows you to extend the life of the tyre and mousse considerably. GHR Hondas have logged over 300,000 km on these rims with mousse and never suffered a failed mousse or Rim that was unrideable. The KTM Factory Rally Twin cylinder race bikes of Meoni and Sala back in the day used these sizes of rims so they are proven on a 200kg dirt bike and of course are perfect for the lighter EXC. Michelin make three different rear mousse in 18" and Excell alone make 5 different 18" rims that other vendors may try to sell you. Only one of the mousse is suitable for long distance racing or trailriding and then matched to the correct rim size and crown. YES excel have different crowns in this size which make fitting tyres and mousse more difficult if you get the wrong combo. On top of that you then need to run the correct tyre to match the mousse and rim.

With the correct rear rim size and crown matched to the correct tyre and Mousse GHR has never suffered a rear wheel failure or mousse failure in a event which has caused a DNF for either a lead rider or customer. In fact Gary Gray from Cobar won a competition with ADB to ride a GHR Honda XR 650 on Safari. He Completed the entire event 4,500km on one rear tyre and Mousse in 12th Outright. Never changed , fact!!

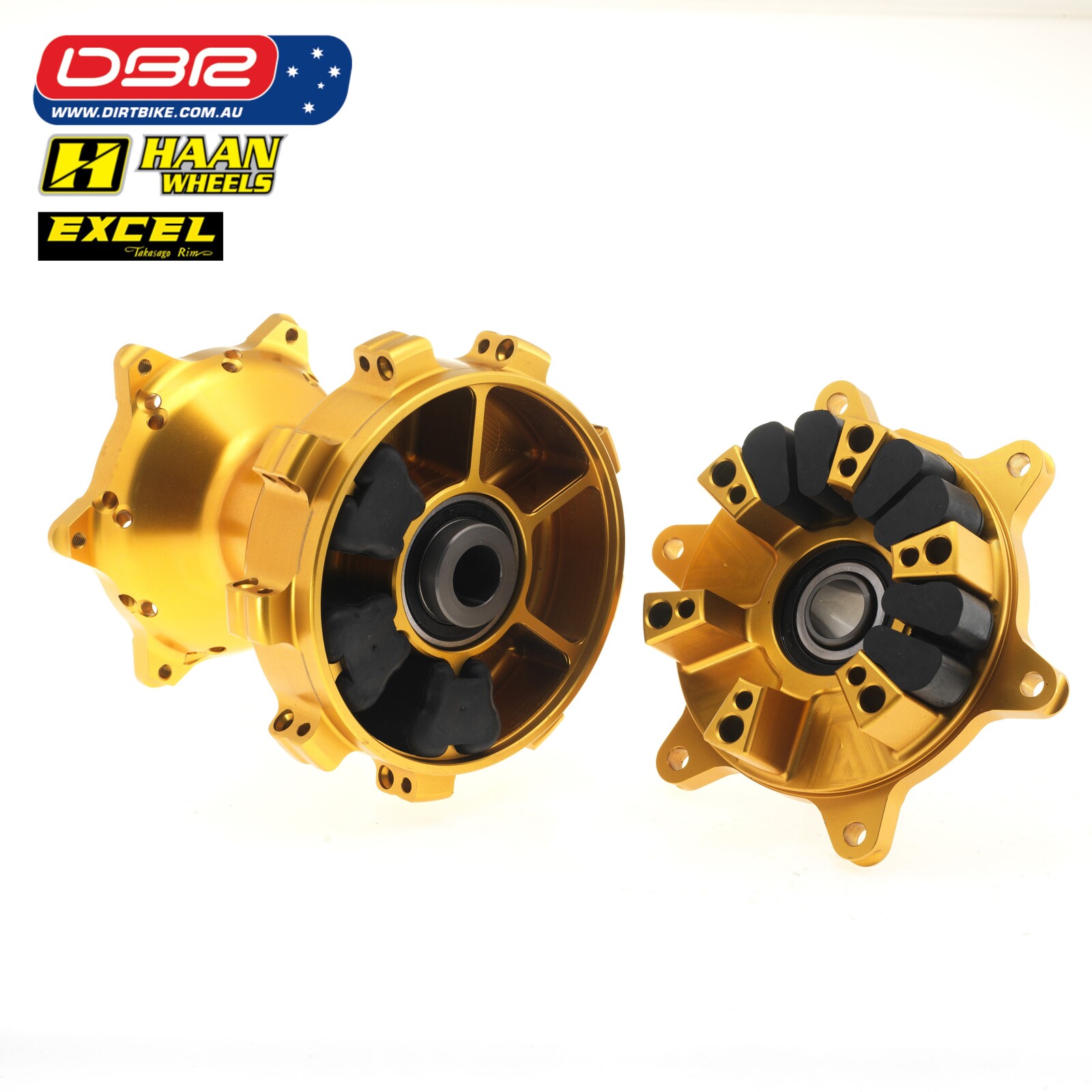

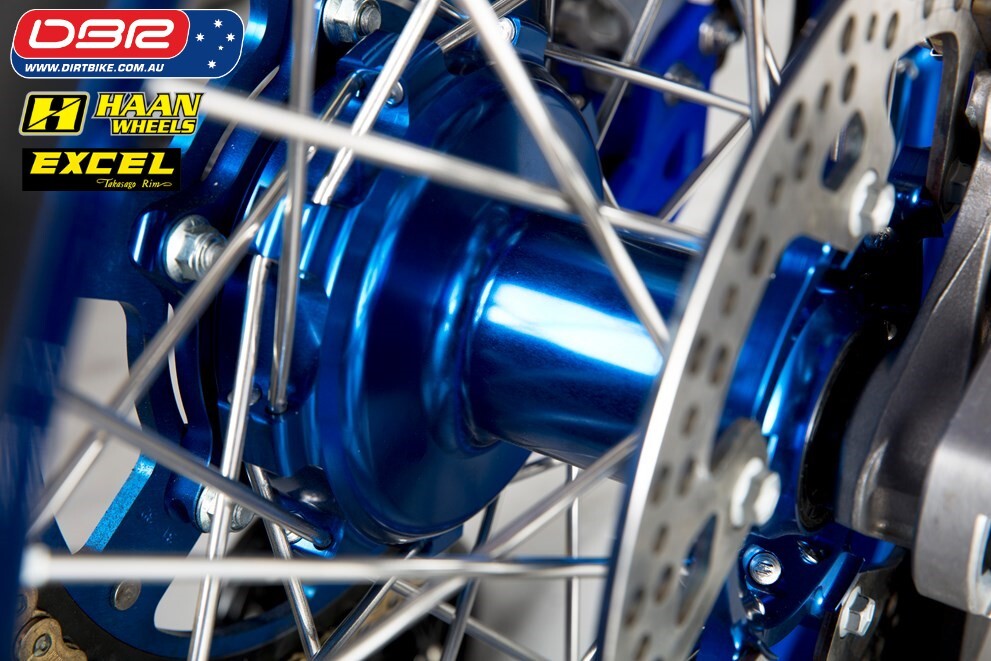

HAAN CUSH HUBS

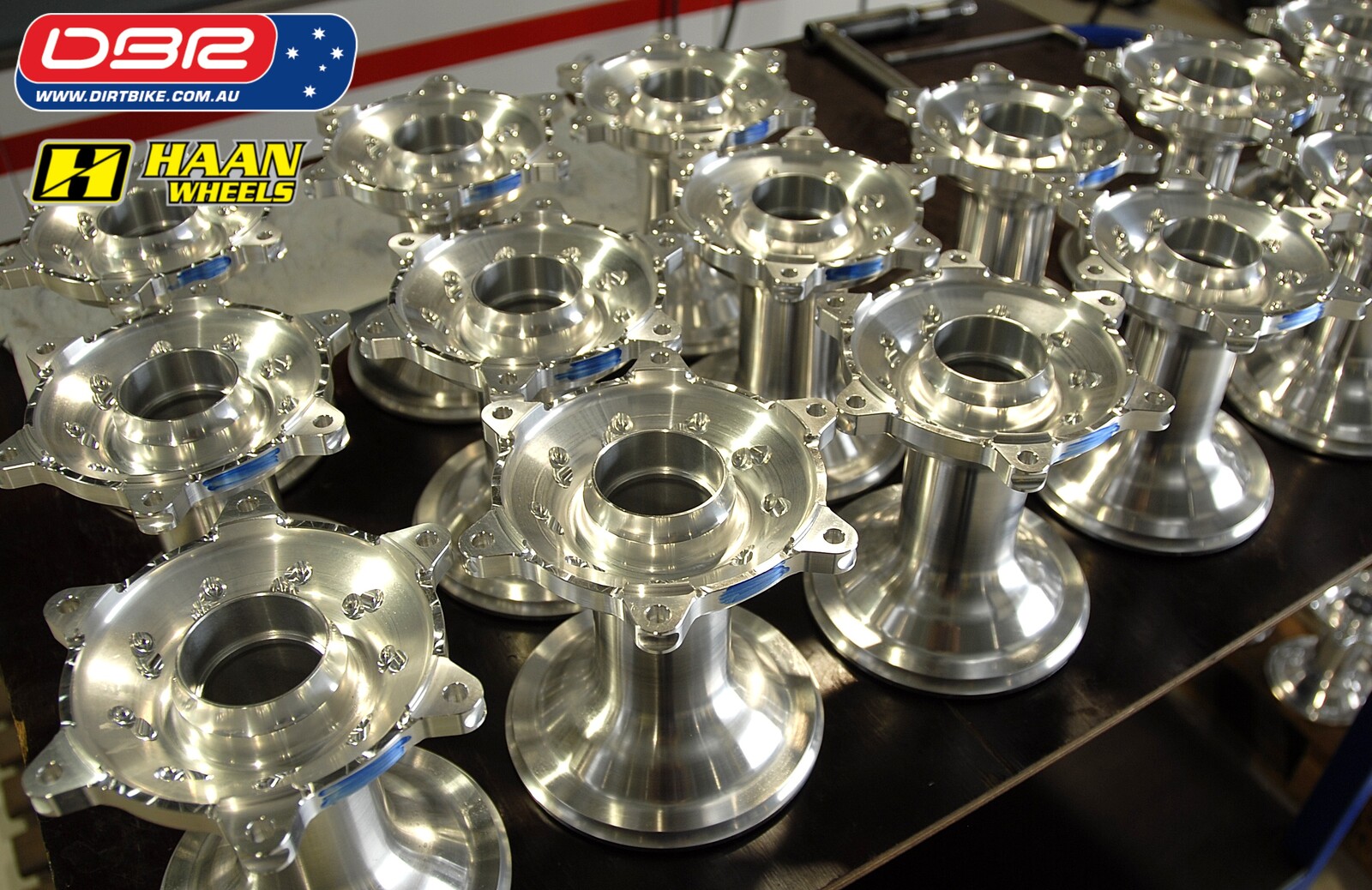

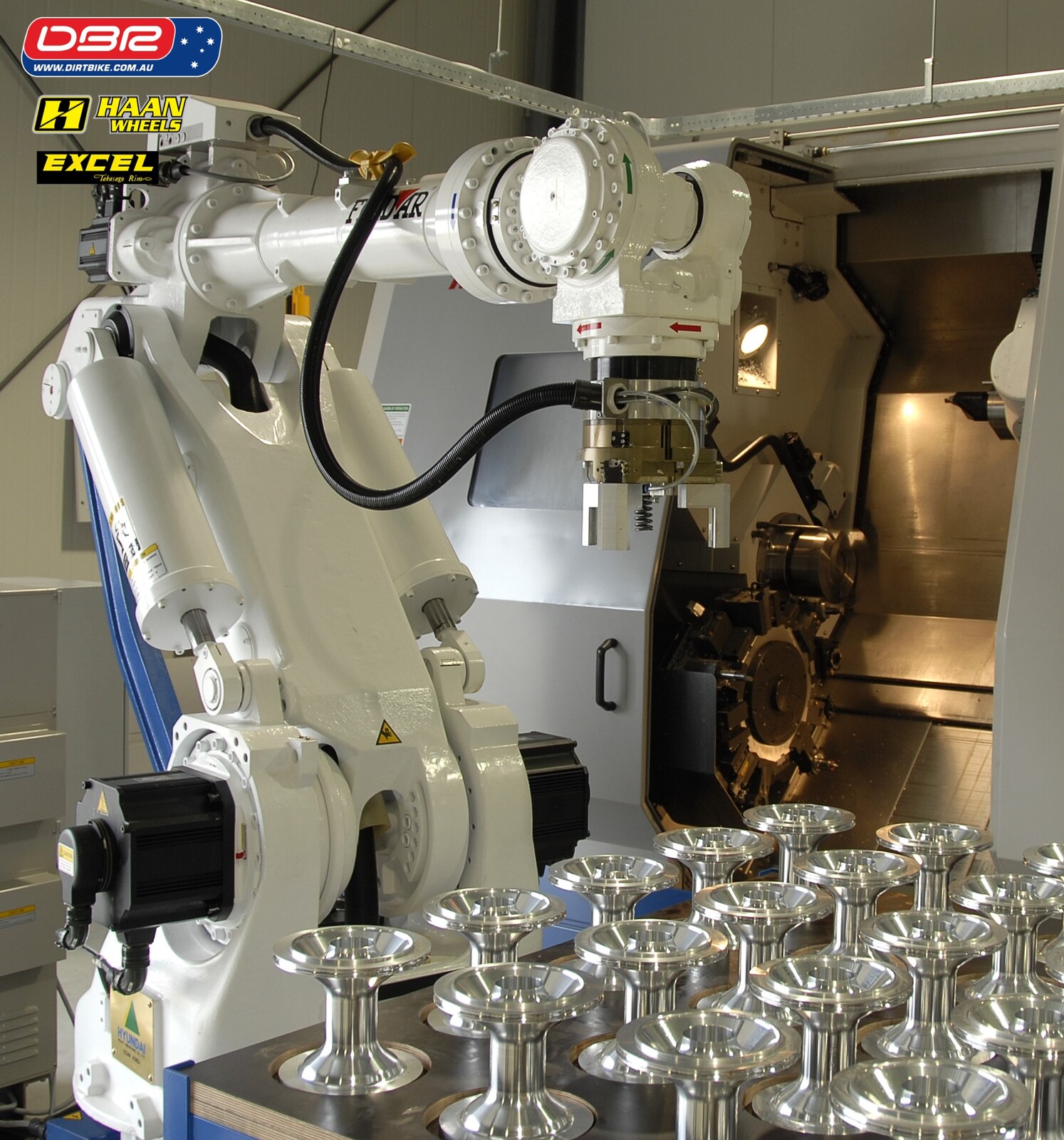

The Haan Wheels cush hubs are also 100% made in the Netherlands. The hubs are made from 1 piece billet 6082 T6 alloy on the newest CNC machines. Hubs are anodized and available in various colours.

• Hubs are CNC machined billet 6082 T6 alloy.
• Original brake disc and sprocket can be mounted on the hubs.
• Hubs are fitted with Koyo bearing, no special sizes but easy available bearings worldwide.
• Most rear hubs have 3 bearings instead of 2 as some original wheels have
• The cush drive hubs have 36 spokes.
• Center tube and spacer are made of 7075 hard alloy.
• Hubs are delivered with all mounting hardware.

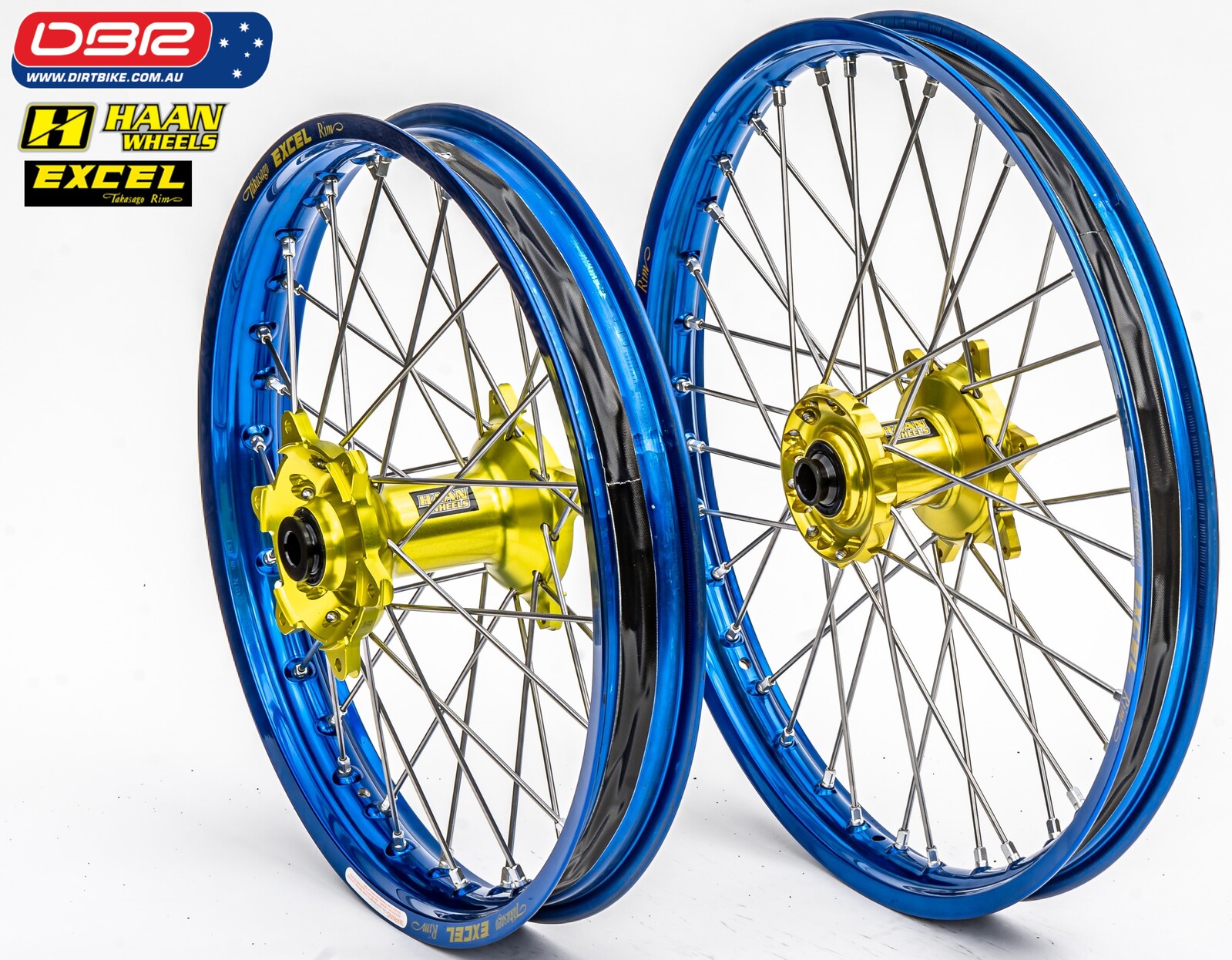

Haan Wheels Cush hubs are available in Black, Silver, Gold, Yellow, Red, Green, Titanium, Magnesium, Orange and Blue.

• Although every effort is made to ensure provided information is correct, Haan / Excel accepts no liability for any errors or any consequences which may arise due to such errors. Haan / Excel also reserves the right to change specifications, discontinue or introduce new products without prior notice. All product images presented are for illustrative purposes only and may vary from actual product depending on bike application.

• Excel Takasago KTM EXC Rally Rims are available in Black, Silver, Blue and Gold.

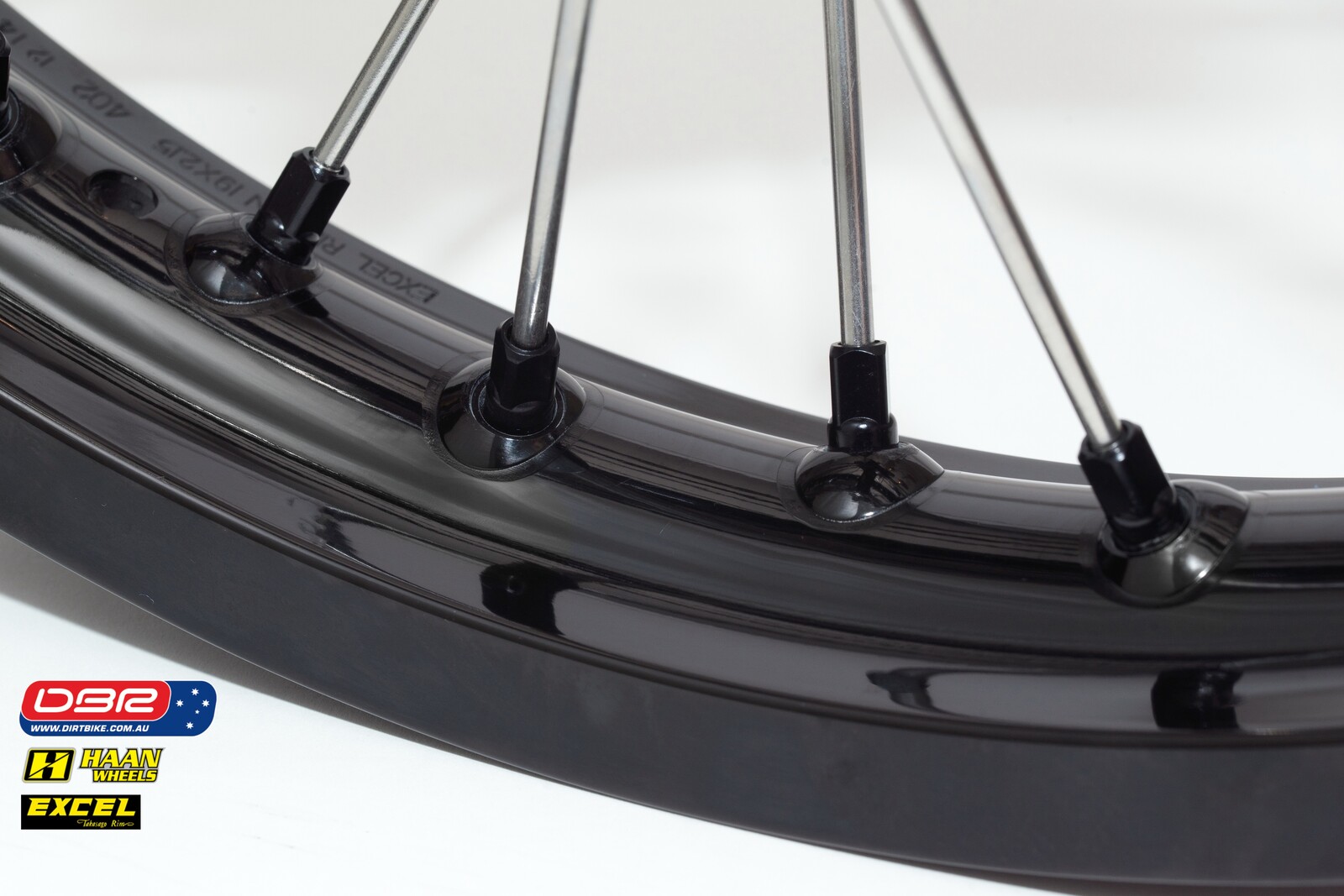

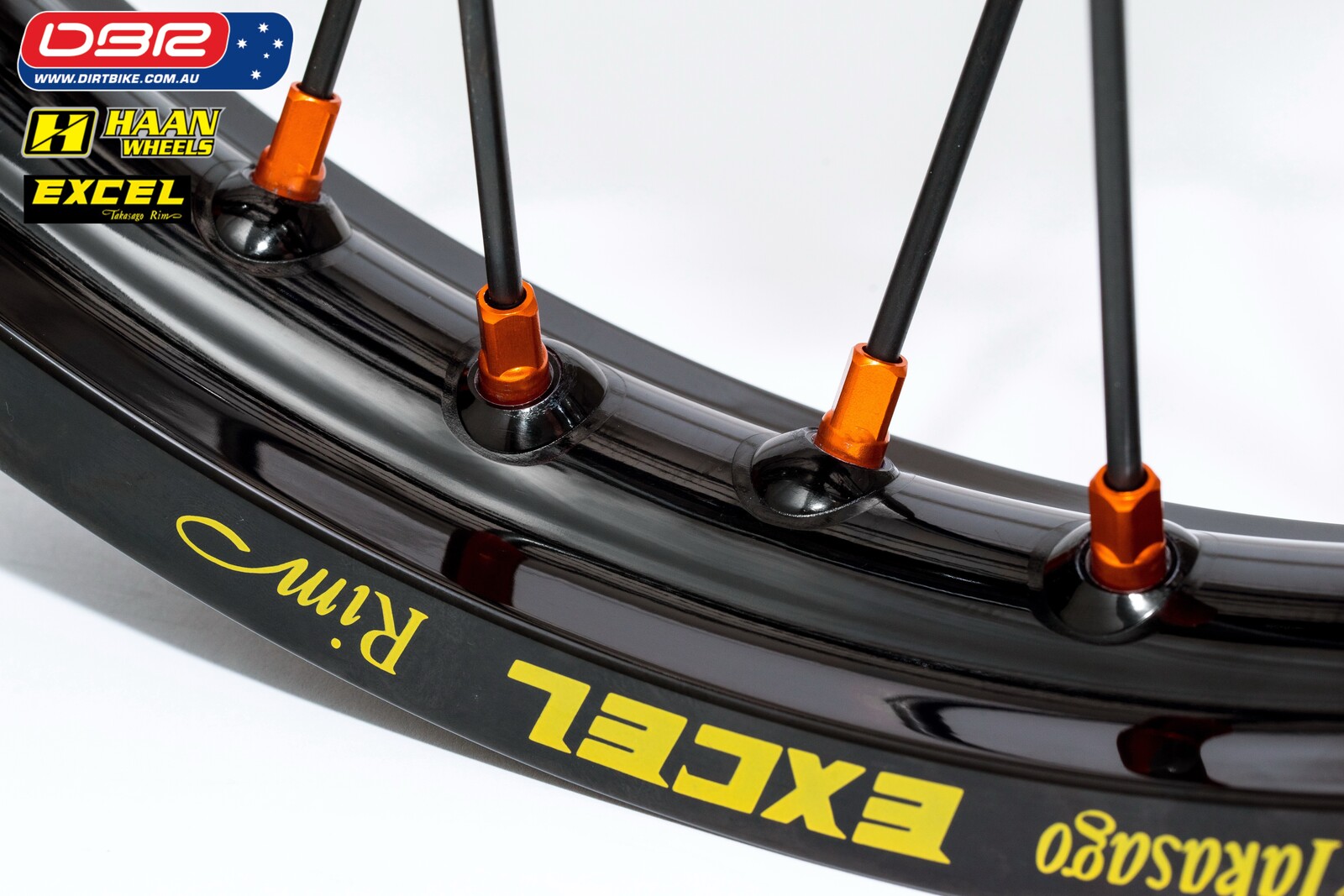

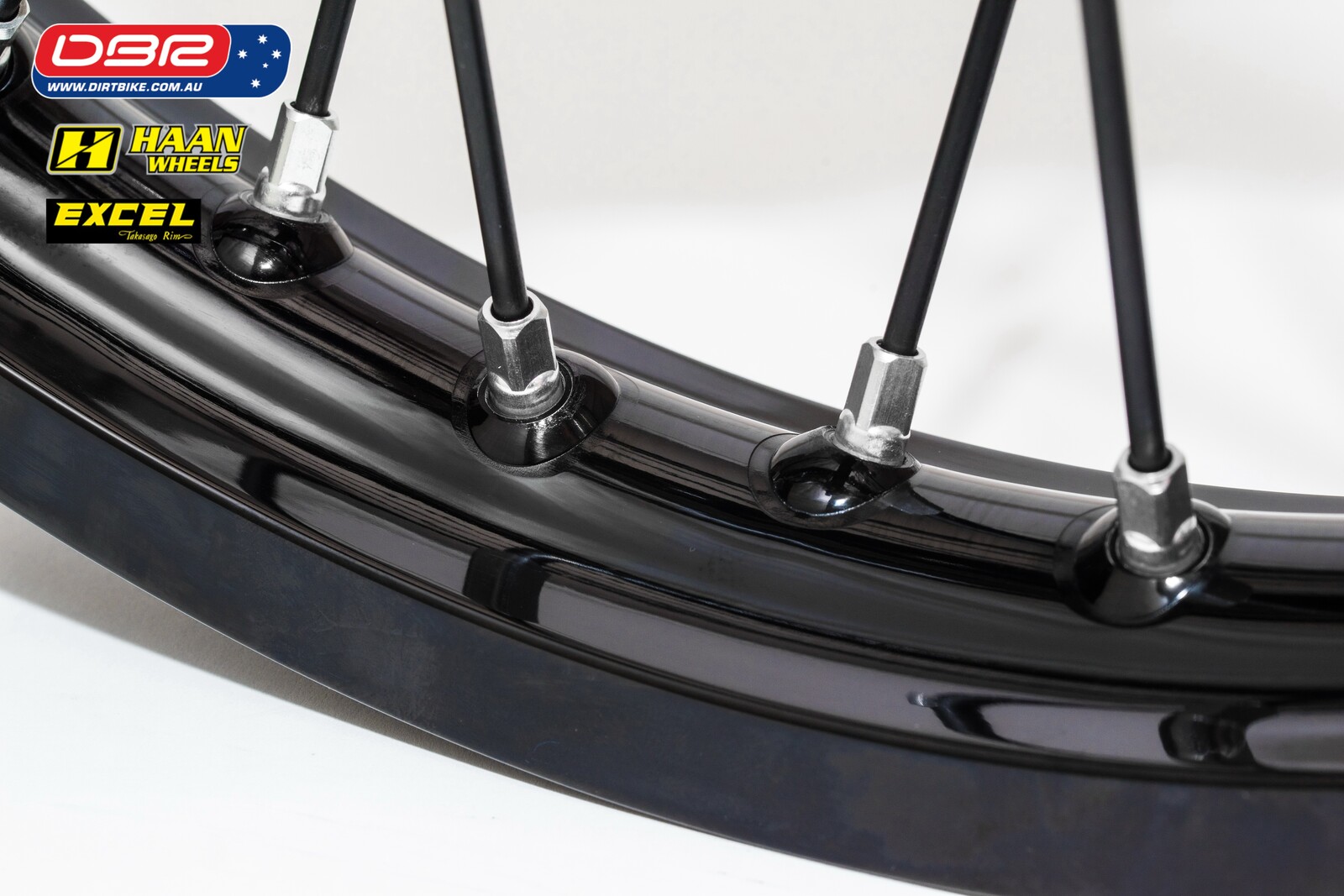

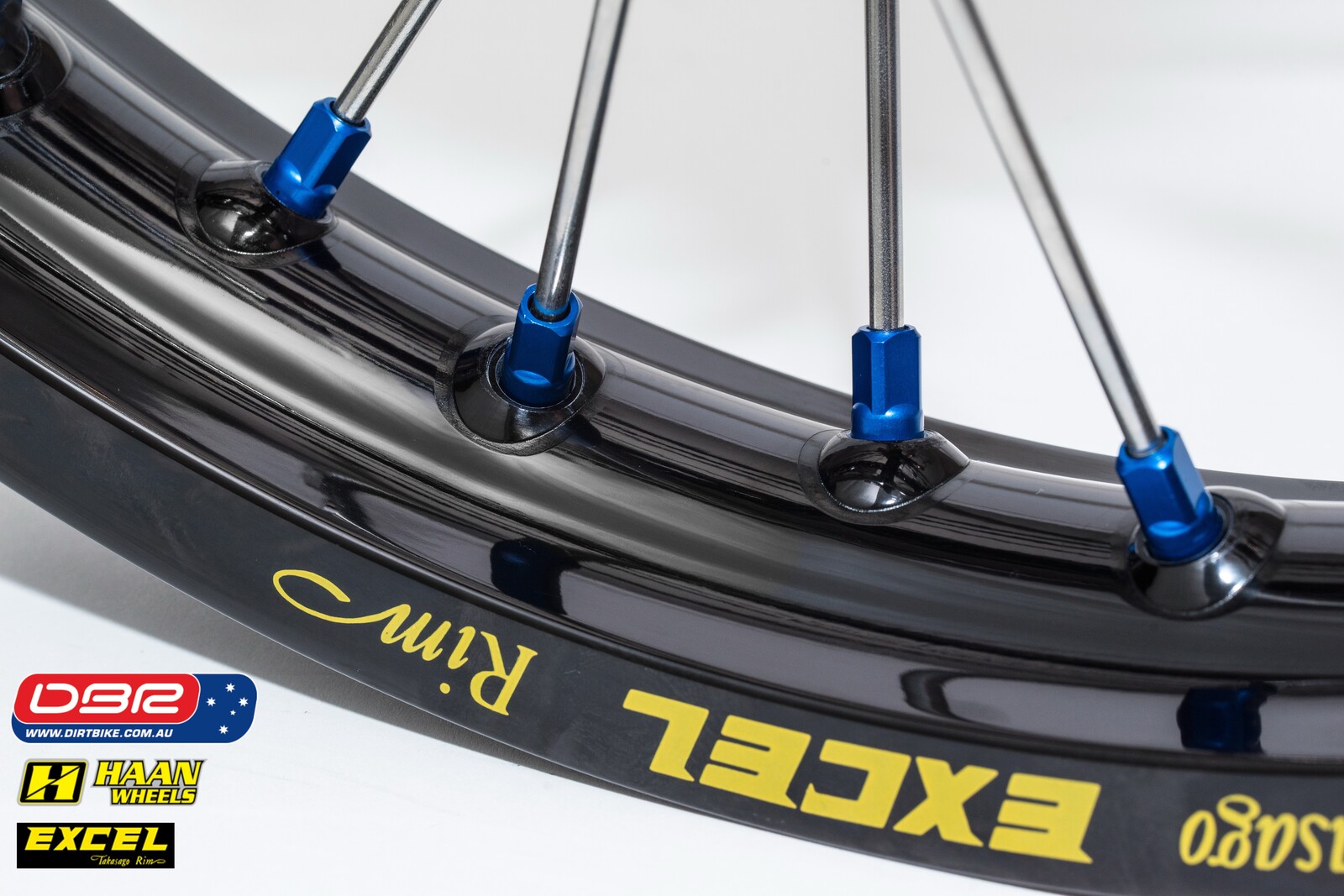

HAAN SPOKES | Rally

Our spokes are made from a special stainless steel. The spokes are made to the needed size in our factory so we can make every spoke kit for different brands and type’s and also for older bikes.

• Up to 30% stronger than original spokes.
• Spoke kits are supplied with matching nipples.
• The Haan black spokes are the same spokes as the stainless and are threaded with a chemical coating.

Haan Wheels spokes are available in Black or Stainless.

Nipples are available in Black, Silver, Gold, Yellow, Red, Green, Orange and Blue.
