DBR TM Designworks Australia Slide & Guide Kit SX / MX Yamaha D RED : (09-22) YZF450, (09-23) YZF 250, (15->C) WRF / YZFX 250, (16->C) WRF / YZ
Description

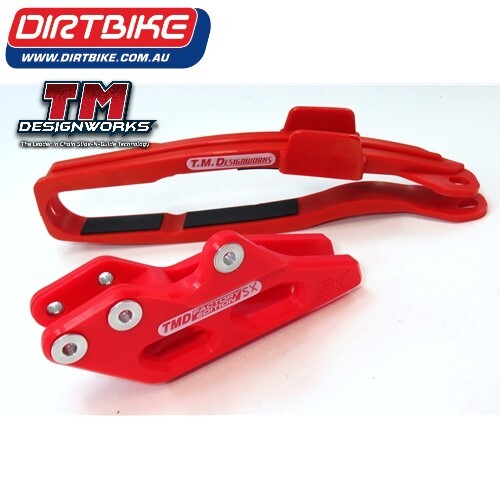

New top performance SX FACTORY EDITION kit for Yamaha's.
Used and tested in 2018 by SX lites teams like 5150 Energy, Rockwell Kawasaki, MX 101 race teams.
The slider is our latest UV protected and oil additive design for low surface drag.
New thickness and angle on slider keeps chain running on center.
Dampening pad are bonded to the slider to help reduce chain slap noise.
The new Factory Edition SX guide is an unbelievable 60 grams lighter and Flexes instead of bending from impacts like the OEM aluminum cage.
SX rear guides use TMD's return memory plastic and is PRE setup for oversize sprockets.
Patented in USA & Europe with a sleek-narrow overall width to rail deep ruts and berms.
Roller set is available separately if needed.
SX Rear guides are designed for MX & SX Track riding only. (Not recommend for off-road)
MADE IN USA
Available in Black, Blue, or Red
Kit MX / SX Yamaha D :
(09-22) YZF450,
(09-23) YZF 250,
(15->C) WRF / YZFX 250,
(16->C) WRF / YZFX 450.
RED
POWERLIP ROLLERS FOR YAMAHA
YZ | 125 | (92->C) | Upper | PLR-212 |
(92->C) | Lower | PLR-550 | ||
YZ | 250 | (92->C) | Upper | PLR-212 |
(92->C) | Lower | PLR-550 | ||
YZX | 250 | (16->C) | Upper | PLR-212 |
(16->C) | Lower | PLR-550 | ||
YZF | 250 | (98->C) | Upper | PLR-212 |
(98-18) | Lower | PLR-550 | ||
(19->C) | Lower | PLR-212 | ||
YZFX | 250 | (15->C) | Upper | PLR-212 |
? | (15->C) | Lower | PLR-550 | |
WRF | 250 | (98->C) | Upper | PLR-212 |
(98->C) | Lower | PLR-550 | ||
YZF | 450 | (98->C) | Upper | PLR-212 |
(98-17) | Lower | PLR-550 | ||
(18->C) | Lower | PLR-212 | ||
WRF | 450 | (98->C) | Upper | PLR-212 |
(98-18) | Lower | PLR-550 | ||
(19->C) | Lower | PLR-212 | ||
YZFX | 450 | (15->C) | Upper | PLR-212 |
(98-18) | Lower | PLR-550 | ||
(19->C) | Lower | PLR-212 |
Specifications
SKU | TM-KT-SG-YAM-D-SX-RD |
Brand | TM Designworks |
Shipping Weight | 0.6000kg |
Shipping Width | 0.030m |
Shipping Height | 0.100m |
Shipping Length | 0.300m |
